NEMA Standard JM/JP Premium Efficiency Electric Motor
Frame: 143JM (JP) ~ 365JM (JP)
Rated power: 1~75HP
Rated voltage: 230/460V,460V or 575V
Rated frequency: 60Hz
Introduction: WhatsApp
NEMA JM/JP are single speed, totally enclosed, fan-cooled, continuous working duty, low voltage cage type three phase induction electric motors which comply with America NEMA MG1 standard and are designed for tight coupling pump. The motors have rigid installing frames and MENA JM/JP pump shafts. All series motors adopt casting iron frames, locked-bearing structure at driving end to limit shaft extension axial float. The efficiency meets America NEMA EPACT、NEMA PREMIUM standard, service factor is 1.25. The motor has passed America CC certification and Canada CSA certification.
NEMA Standard JM/JP Premium Efficiency Electric Motor Features
1 – 75 hp
Designed to meet mounting requirements of JM, JP and West Coast Fit
Motor flange and shaft designed to support pump unit
Oversized ball bearing with locked DE construction to minimize endplay
Dynamically balanced rotor to reduce noise and increase bearing life
Inverter-Ready
Motor enclosures available in both enclosed and open
1.15 SF, Class F Insulation
Stainless Steel version: Class H insulation system
Corrosion resistant finish
1 Year warranty, NEMA Premium® Efficiency
NEMA Standard JM/JP Premium Efficiency Electric Motor Common applications
Residential and Industrial pumps
Transfer and circulating pumps
Fluid handling
Water treatment
Food Processing
NEMA Standard JM/JP Premium Efficiency Electric Motor Common industries
Aggregate
Cement
Chemical
Forest
Petroleum
Pulp & Paper
Food
NEMA Frame Number Suffixes
You’ll notice a letter suffix after the NEMA frame number and it, too, has been standardized by NEMA regulations. These suffixes provide key information about the motor, how it is mounted, what its purpose is, what type of shafts it has, and more. Here is a summary of what the suffixes mean:
C: type C face mounting on DE
D: type D flange mounting on DE
H: designated 56H motors have two sets of 2F mounting holes, 3 in. and 5 in.
J: NEMA C face mount, threaded shaft pump motor
JM: face-mounted, close-coupled pump motors with specific dimensions and bearings
JP: type C face-mounted, close-coupled pump motors with specific dimensions and bearings
K: has a hub for sump pump mounting
LP or LPH: type P flange-mounted, vertical solid-shaft motors
M or N: flange mount for oil burner motors (6 3/4” flange for M, 7 1/4” flange for N)
P or PH: type P flange-mounted vertical hollow-shaft motors
R: drive end tapered shaft connection
S: Standard short shaft for direct connection
T: standard dimensions for this frame designation have been established
V: vertical mounting only
VP: type P-flange mounted, vertical solid shaft motor
X: wound-rotor crange motor with a double shaft extension
Y: special mounting dimensions, contact manufacturer for details
Z: all mounting dimensions are standard except the shaft dimensions OR used to designate double shaft extensions, but in either case contact the manufacturer for details
Technical Data: WhatsApp
| Type | Rated Power | At Full Load | EFF η(%) | Locked Current (A) under 460V | Locked Torque Rated Torque(%) | Maximum Torque Rated Torque(%) | |||||||
| Speed(r/min) | Current(A)under 460V | Connection Method 230/460V | Current(A)under 575V | Connection Method 575V | Power Factor(cosφ) | ||||||||
| FL 100% | FL 75% | ||||||||||||
| HP | kW | ||||||||||||
| Synchronous Speed 3600r/min 60Hz | |||||||||||||
| 143JM/JP | 1.0HP | 0.75KW | 3480 | 1.56 | 2Y/Y | 1.25 | Y | 0.78 | 77 | 78 | 15 | 180 | 260 |
| 143JM/JP | 1.5HP | 1.1KW | 3490 | 2.09 | 2Y/Y | 1.67 | Y | 0.80 | 82.5 | 82.0 | 20 | 230 | 320 |
| 145JM/JP | 2.0HP | 1.5KW | 3495 | 2.74 | 2Y/Y | 2.19 | Y | 0.80 | 84 | 83.5 | 25 | 230 | 320 |
| 182JM/JP | 3HP | 2.2KW | 3490 | 3.82 | 2Y/Y | 3.06 | Y | 0.85 | 86.5 | 87.0 | 32 | 200 | 340 |
| 184JM/JP | 5HP | 3.7KW | 3490 | 6.01 | 2Y/Y | 4.81 | Y | 0.88 | 88.5 | 89.8 | 46 | 210 | 340 |
| 213JM/JP | 7.5HP | 5.5KW | 3505 | 9.45 | 2△/△ | 7.56 | Y | 0.83 | 89.5 | 89.7 | 63.5 | 150 | 280 |
| 215JM/JP | 10HP | 7.5KW | 3500 | 12.2 | 2△/△ | 9.77 | Y | 0.85 | 90.2 | 90.7 | 81 | 140 | 250 |
| 254JM/JP | 15HP | 11KW | 3540 | 17.5 | 2△/△ | 14.0 | Y | 0.88 | 91.0 | 91.5 | 116 | 160 | 230 |
| 256JM/JP | 20HP | 15KW | 3540 | 23.1 | 2△/△ | 18.5 | Y | 0.89 | 91.0 | 91.5 | 145 | 160 | 230 |
| 284JM/JP | 25HP | 18.5KW | 3550 | 29.3 | 2△/△ | 23.5 | △ | 0.87 | 91.7 | 92.1 | 182.5 | 150 | 230 |
| 286JM/JP | 30HP | 22KW | 3550 | 34.8 | 2△/△ | 27.8 | △ | 0.88 | 91.7 | 92.4 | 217.5 | 150 | 230 |
| 324JM/JP | 40HP | 30KW | 3545 | 46.1 | 2△/△ | 36.8 | △ | 0.88 | 92.4 | 92.8 | 290 | 180 | 260 |
| 326JM/JP | 50HP | 37KW | 3545 | 56.6 | 2△/△ | 45.3 | △ | 0.89 | 93.0 | 93.4 | 362.5 | 180 | 260 |
| 364JM/JP | 60HP | 45KW | 3560 | 70.6 | 2△/△ | 56.5 | △ | 0.85 | 93.6 | 93.8 | 435 | 190 | 220 |
| 365JM/JP | 75HP | 55KW | 3560 | 88.3 | 2△/△ | 70.6 | △ | 0.85 | 93.6 | 93.6 | 542.5 | 160 | 200 |
| Type | Rated Power | At Full Load | EFF η(%) | Locked Current (A) under 460V | Locked Torque Rated Torque(%) | Maximum Torque Rated Torque(%) | |||||||
| Speed(r/min) | Current(A)under 460V | Connection Method 230/460V | Current (A) under 575V | Connection Method 575V | Power Factor (cosφ) | ||||||||
| FL 100% | FL 75% | ||||||||||||
| HP | kW | ||||||||||||
| Synchronous Speed 1800r/min 60Hz | |||||||||||||
| 143JM/JP | 1.0HP | 0.75KW | 1755 | 1.63 | 2Y/Y | 1.31 | Y | 0.67 | 85.5 | 84.5 | 15 | 300 | 420 |
| 143JM/JP | 1.5HP | 1.1KW | 1755 | 2.22 | 2Y/Y | 1.78 | Y | 0.73 | 86.5 | 86.2 | 20 | 280 | 390 |
| 145JM/JP | 2HP | 1.5KW | 1755 | 2.97 | 2Y/Y | 2.37 | Y | 0.73 | 86.5 | 86.4 | 25 | 270 | 350 |
| 182JM/JP | 3HP | 2.2KW | 1755 | 4.08 | 2Y/Y | 3.26 | Y | 0.77 | 89.5 | 89.7 | 32 | 220 | 320 |
| 184JM/JP | 5HP | 3.7KW | 1755 | 6.30 | 2Y/Y | 5.04 | Y | 0.83 | 89.5 | 90.0 | 46 | 200 | 280 |
| 213JM/JP | 7.5HP | 5.5KW | 1760 | 9.23 | 2△/△ | 7.38 | Y | 0.83 | 91.7 | 91.8 | 63.5 | 170 | 280 |
| 215JM/JP | 10HP | 7.5KW | 1760 | 12.2 | 2△/△ | 9.72 | Y | 0.84 | 91.7 | 91.9 | 81 | 170 | 280 |
| 254JM/JP | 15HP | 11KW | 1765 | 18.1 | 2△/△ | 14.5 | Y | 0.84 | 92.4 | 92.7 | 116 | 170 | 250 |
| 256JM/JP | 20HP | 15KW | 1765 | 23.7 | 2△/△ | 19.0 | Y | 0.85 | 93.0 | 93.2 | 145 | 180 | 250 |
| 284JM/JP | 25HP | 18.5KW | 1770 | 29.4 | 2△/△ | 23.5 | △ | 0.85 | 93.6 | 93.9 | 182.5 | 160 | 240 |
| 286JM/JP | 30HP | 22KW | 1770 | 35.3 | 2△/△ | 28.2 | △ | 0.85 | 93.6 | 93.9 | 217.5 | 160 | 240 |
| 324JM/JP | 40HP | 30KW | 1775 | 46.8 | 2△/△ | 37.5 | △ | 0.85 | 94.1 | 94.6 | 290 | 160 | 250 |
| 326JM/JP | 50HP | 37KW | 1775 | 57.6 | 2△/△ | 46.1 | △ | 0.86 | 94.5 | 94.9 | 362.5 | 160 | 260 |
| 364JM/JP | 60HP | 45KW | 1780 | 71.2 | 2△/△ | 57.0 | △ | 0.83 | 95.0 | 95.3 | 435 | 190 | 250 |
| 365JM/JP | 75HP | 55KW | 1780 | 88.7 | 2△/△ | 71.0 | △ | 0.83 | 95.4 | 95.5 | 542.5 | 190 | 250 |
| Type | Rated Power | At Full Load | EFF η(%) | Locked Current（A）under 460V | Locked Torque Rated Torque（%） | Maximum Torque Rated Torque（%） | |||||||
| Speed（r/min） | Current（A）under 460V | Connection 230/460V | Current（A）under 575V | Connection 575V | Power Factor（cosφ） | ||||||||
| FL 100% | FL 75% | ||||||||||||
| HP | kW | ||||||||||||
| Synchronous Speed 1200r/min 60Hz | |||||||||||||
| 145JM/JP | 1.0HP | 0.75KW | 1160 | 1.75 | 2Y/Y | 1.40 | Y | 0.65 | 82.5 | 82 | 15 | 190 | 265 |
| 182JM/JP | 1.5HP | 1.1KW | 1180 | 2.36 | 2Y/Y | 1.89 | Y | 0.68 | 87.5 | 86.8 | 20 | 210 | 350 |
| 184JM/JP | 2HP | 1.5KW | 1175 | 2.98 | 2Y/Y | 2.38 | Y | 0.71 | 88.5 | 88.3 | 25 | 200 | 320 |
| 213JM/JP | 3HP | 2.2KW | 1175 | 4.48 | 2Y/Y | 3.59 | Y | 0.7 | 89.5 | 89.5 | 32 | 155 | 240 |
| 215JM/JP | 5HP | 3.7KW | 1175 | 7.27 | 2Y/Y | 5.81 | Y | 0.72 | 89.5 | 89.6 | 46 | 155 | 250 |
| 254JM/JP | 7.5HP | 5.5KW | 1175 | 9.41 | 2△/△ | 7.53 | Y | 0.82 | 91.0 | 91.3 | 63.5 | 170 | 280 |
| 256JM/JP | 10HP | 7.5KW | 1175 | 12.5 | 2△/△ | 10.0 | Y | 0.82 | 91.0 | 91.2 | 81 | 180 | 280 |
| 284JM/JP | 15HP | 11KW | 1185 | 19.4 | 2△/△ | 15.5 | △ | 0.79 | 91.7 | 92.0 | 116 | 145 | 230 |
| 286JM/JP | 20HP | 15KW | 1185 | 25.5 | 2△/△ | 20.4 | △ | 0.8 | 91.7 | 92.1 | 145 | 140 | 220 |
| 324JM/JP | 25HP | 18.5KW | 1185 | 32.7 | 2△/△ | 26.2 | △ | 0.77 | 93.0 | 93.4 | 182.5 | 160 | 210 |
| 326JM/JP | 30HP | 22KW | 1185 | 38.7 | 2△/△ | 31.0 | △ | 0.78 | 93.0 | 93.3 | 217.5 | 170 | 230 |
| 364JM/JP | 40HP | 30KW | 1185 | 49.1 | 2△/△ | 39.3 | △ | 0.81 | 94.1 | 94.2 | 290 | 215 | 230 |
| 365JM/JP | 50HP | 37KW | 1185 | 60.7 | 2△/△ | 48.5 | △ | 0.82 | 94.1 | 94.3 | 362.5 | 215 | 230 |
Connection 230/460V column indicates that “△” is only for single voltage 460V.

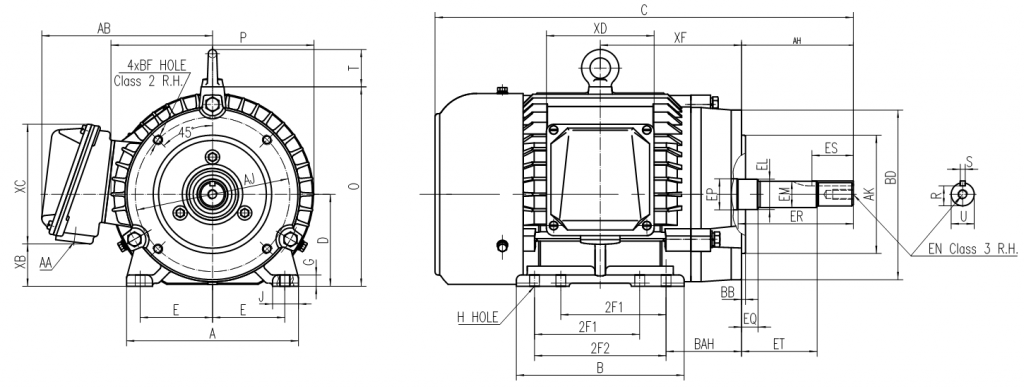

Installation Dimension: WhatsApp
| Frame No. | Dimensions（inch） | ||||||||||||||||||||||||||
| MAX A | MAX B | C | D | E | 2F1 | 2F2 | G | H | J | ET | O | P | R | S | T | U | MIN ER | MIN ES | AA | AB | BAH | AH | EQ | EP | EM | EL | |
| 143JM | 7 | 5.6 | 15 | 3.5 | 2.75 | 4 | 0.43 | 0.34 | 1 | 2.875 | 7.6 | 7.8 | 0.768 | 0.188 | 1.42 | 0.874 | 4.37 | 1.65 | 3/4 | 6.7 | 2.87 | 4.25 | 0.625 | 1.181 | 1 | 1.155 | |
| 143JP | 18.2 | 5.937 | 7.42 | 7.31 | 1.563 | ||||||||||||||||||||||
| 145JM | 6.6 | 16 | 4 | 5 | 2.875 | 4.37 | 4.25 | 0.625 | |||||||||||||||||||
| 145JP | 19.2 | 5.937 | 7.42 | 7.31 | 1.563 | ||||||||||||||||||||||
| 182JM | 9 | 6 | 17 | 4.5 | 3.75 | 4.5 | 0.6 | 0.41 | 2 | 2.875 | 9.5 | 9.7 | 0.768 | 0.188 | 1.42 | 0.874 | 4.27 | 1.65 | 1 | 8 | 3.37 | 4.25 | 0.625 | 1.378 | 1 | 1.25 | |
| 182JP | 20 | 5.937 | 7.34 | 7.31 | 1.563 | ||||||||||||||||||||||
| 184JM | 7 | 18 | 4.5 | 5.5 | 2.875 | 4.27 | 4.25 | 0.625 | |||||||||||||||||||
| 184JP | 21 | 5.937 | 7.34 | 7.31 | 1.563 | ||||||||||||||||||||||
| 213JM | 10.5 | 7.5 | 20 | 5.25 | 4.25 | 5.5 | 0.71 | 0.41 | 2.4 | 2.875 | 10.6 | 10.4 | 0.77 | 0.188 | 1.73 | 0.874 | 4.5 | 1.732 | 1 | 8.5 | 4.5 | 4.2 | 0.625 | 1.772 | 1 | 1.25 | |
| 213JP | 24 | 5.875 | 1.11 | 0.25 | 1.249 | 8.37 | 2.60 | 8.125 | 2.375 | 1.375 | 1.75 | ||||||||||||||||
| 215JM | 9 | 21.5 | 5.5 | 7 | 2.875 | 0.77 | 0.188 | 0.874 | 4.5 | 1.732 | 4.2 | 0.625 | 1 | 1.25 | |||||||||||||
| 215JP | 25.5 | 5.875 | 1.11 | 0.25 | 1.249 | 8.37 | 2.60 | 8.125 | 2.375 | 1.375 | 1.75 | ||||||||||||||||
| 254JM | 12.5 | 10.3 | 25 | 6.25 | 5 | 8.25 | 0.79 | 0.53 | 2.4 | 3 | 12.9 | 12.6 | 1.11 | 0.25 | 2.05 | 1.249 | 5.4 | 2.60 | 1-1/2 | 10.5 | 4.5 | 5.25 | 0.625 | 1.772 | 1.375 | 1.75 | |
| 254JP | 28 | 5.875 | 8.28 | 8.125 | 2.375 | ||||||||||||||||||||||
| 256JM | 12 | 26.5 | 8.25 | 10 | 3 | 5.4 | 5.25 | 0.625 | |||||||||||||||||||
| 256JP | 29.5 | 5.875 | 8.28 | 8.125 | 2.375 | ||||||||||||||||||||||
| 284JM | 14 | 12.4 | 27.5 | 7 | 5.5 | 9.5 | 0.87 | 0.53 | 2.8 | 3 | 14.3 | 14 | 1.11 | 0.25 | 2.05 | 1.249 | 5.5 | 2.60 | 1-1/2 | 11.5 | 5 | 5.25 | 0.625 | 2.165 | 1.375 | 1.75 | |
| 284JP | 30.5 | 5.875 | 8.4 | 8.125 | 2.375 | ||||||||||||||||||||||
| 286JM | 13.9 | 29 | 9.5 | 11 | 3 | 5.5 | 5.25 | 0.625 | |||||||||||||||||||
| 286JP | 32 | 5.875 | 8.4 | 8.125 | 2.375 | ||||||||||||||||||||||
| 324JM | 16 | 13.5 | 30 | 8 | 6.25 | 10.5 | 0.99 | 0.66 | 2.8 | 3 | 16 | 15.7 | 1.112 | 0.252 | 2.44 | 1.249 | 5.47 | 2.56 | 2 | 14.5 | 5.5 | 5.25 | 0.625 | 2.36 | 1.375 | 1.75 | |
| 324JP | 33 | 5.875 | 8.34 | 8.125 | 2.375 | ||||||||||||||||||||||
| 326JM | 15 | 31.5 | 10.5 | 12 | 3 | 5.47 | 5.25 | 0.625 | |||||||||||||||||||
| 326JP | 34.5 | 5.875 | 8.34 | 8.125 | 2.375 | ||||||||||||||||||||||
| 364JM | 17 | 15 | 32.2 | 9 | 7 | 11.25 | 1.18 | 0.66 | 3 | 3 | 18.8 | 19.1 | 1.112 | 0.252 | 2.44 | 1.249 | 5.38 | 2.6 | 3 | 16.5 | 6.11 | 5.25 | 0.625 | 2.55 | 1.375 | 1.75 | |
| 364JP | 35 | 5.875 | 1.413 | 0.375 | 1.624 | 8.26 | 2.53 | 8.125 | 2.37 | 1.75 | 2.124 | ||||||||||||||||
| 365JM | 16 | 33.2 | 11.25 | 12.25 | 3 | 1.112 | 0.252 | 1.249 | 5.38 | 2.6 | 5.25 | 0.625 | 1.375 | 1.75 | |||||||||||||
| 365JP | 36 | 5.875 | 1.413 | 0.375 | 1.624 | 8.26 | 2.53 | 8.125 | 2.37 | 1.75 | 2.124 | ||||||||||||||||
