ML Series Aluminum Housing Single-Phase Running And Starting Capacitor Asynchronous Motor

ML series motors start by capacitor, is so called two-value capacitor induction motor with the advantages of the capacitor start motor and capacitor running motor, , high efficiency, energy saving, low noise, little vibration, light weight, convenient operation and maintenance. ML series aluminum housing single-phase dual-capacitor asynchronous motors,with latest design in entirety, are made of selected qualified die casted aluminum-alloy materials and conform to the IEC standard. ML motors have good performance,safety and reliable operation,the multiple of starting torque is up to 2.5 and driven by a single- -phase AC supply. Widely used in many places, where do not exist combustible, explosive or corrosive gas, and without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machines, air compressor etc.

ML Series Single Phase Dual-capacitor Induction Motor Standard Features

Type: Single Phase Asynchronous Motor
Rated output: 0.12~4kW, 0.16~5.5HP
Rated voltage: 110V, 115V, 220V, 230V, 240V
Rated frequency (Speed):
50Hz (Synchronous speed 3000/1500 r/min),
60Hz (Synchronous speed 3600/1800 r/min)
No. of poles: 2, 4 Pole

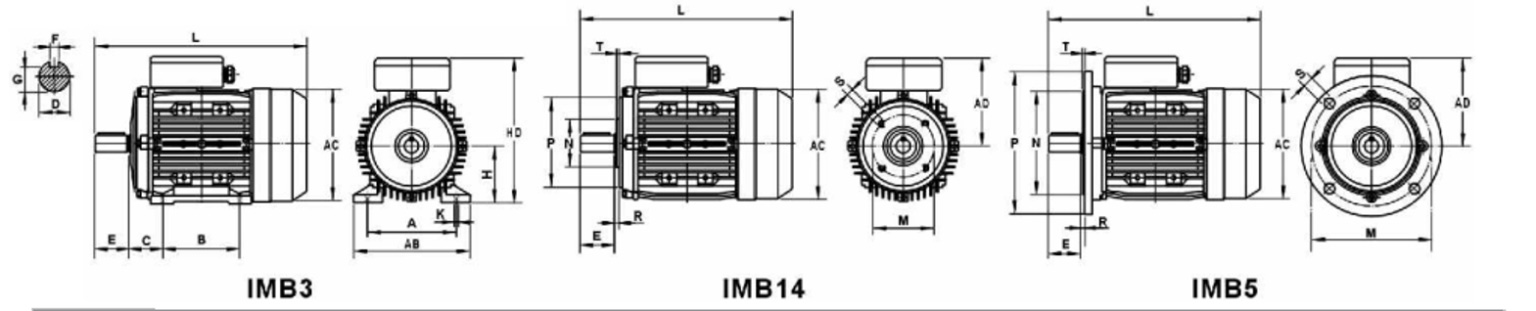

Mounting methods: B14, B3, B34, B35, B5
Material of housing: Aluminum-alloy
Frame size: H63~H112 frame
Ambient Temperature: -20~40°C
Altitude: 1000 m.a.s.l
Humidity: ≦90%
Protection Class: IP44, IP54, IP55
Insulation Class: B (130℃), F (155℃)
Temp. Rising: ΔT=80°K (B class)
Cooling: IC411 (Totally-enclosed, fan-cooled)
Working Duty: S1 (Continuous)
Customized frame size/power
Shaft: Special dimensions, double shaft end, tapered, hollow as per request
Service Factor: 1.15 or above
Insulation Class: H (180℃)
Ambient temperature: Above 40 °C (on request)
Altitude: ＞1000M (on request)
Bearing: SKF, FAG brand

Customized ML Series Single Phase Electric Motor

Customized frame size/power
Shaft: Special dimensions, double shaft end, tapered, hollow as per request
Service Factor: 1.15 or above
Insulation Class: H (180℃)
Ambient temperature: Above 40 °C (on request)
Altitude: ＞1000M (on request)
Bearing: SKF, FAG brand

Electric Motor Factory Advantages.

Prompt Quotation
Competitive Price
Guaranteed Quality
Timely Delivery.
100% Tested.
Sincere and Professional Service.
Outstanding Finishing Surface.
Strictly and Perfect Management is guaranteed for Production.

ML Series Aluminum Housing Single-Phase Induction Motor Manufacturer

Specialized in Manufacturing and Supplying a wide range of Electric motors and since year 2002. Have Rich Experience and Strong ability to Develop New Products. Have Ability to Design the Products Based on Your Original Samples. We Promise you all the time after you working with us for Win-Win Business. Prompt Reply to Your Inquiry within 24 Hs during Working Days. Long Life Time Products. Professional Service in Handling Your Goods in Daily Communications.

The Difference of MC ML MY Aluminum Housing Single-Phase Motor

MC series motor is with 1 capacitor, which is capacitor-start type, which can supply high starting torque.

ML series motor is with 2 capacitors, which are capacitor-start and capacitor-run. They can supply high starting torque and long time stable running performances

MY series motor is with 1 capacitor, which is capacitor-run type, which can supply long time stable running performances.
