YY Series Single-phase Asynchronous Motor adopted the newest design and high quality material. It is conformity with the IEC34-1 standards,The efficiency of the motors can meet EFF2 and EFF1 if requested. YY series single-phase capacitor running asynchronous motor have good performance, safe and reliable operation, nice appearance, convenient maintenance low noise, slight vibration, light weight and simple construction.
These motors which is conform to National Industry Standard of PRC, are widely used in Small Machinery, Sewing Equipment, Medical Devices, Domestic Appliance, which all have no special requirements to the starting torque. They have outstanding performance, simple structure, easy maintenance, etc.
YY Series Single-phase Asynchronous Motor Features
Frame sizes: 50 to 90
Rated output: 0.04 to 2.2kW
Voltage: 220V, 110V-240V is available
Duty Cycle: S1
Insulation class: B
Number of poles: 2,4
Ambient temperature: -15ºC<θ<40ºC
Altitude: not exceed 1000m
Rated frequency: 50Hz or 60Hz
Cooling method: IC0141
The Difference Between YY, YL, YC Single-Phase Induction Motors
YY series is a single-phase AC motor with capacitor running, and the capacitor participates in both motor startup and motor operation. YY series single-phase capacitor running asynchronous motor has the characteristics of small starting current, high power and performance index, reliable operation and convenient maintenance. It can be widely used in household appliances, fans, recording instruments and occasions with low requirements for starting.
YL series is a dual-value capacitor single-phase AC motor, that is, there are two capacitors. In order to increase the starting torque of the motor, the starting capacitor participates in the starting when the motor starts; after the motor starts, the starting capacitor is disconnected by the centrifugal switch and does not participate in the motor. Operation; YL series motors are characterized by low price, large starting torque, strong overload capacity, and are also suitable for use in places where the power supply voltage is unstable. They are widely used to drive metal cutting machine tools, pumps, transportation machinery, mixers, agricultural machinery, food Machinery and household appliances, etc.
YC series is a single-phase capacitor starting AC motor, only + has a starting capacitor. When the motor starts, the starting capacitor participates in the starting; after the motor starts, the starting capacitor is disconnected by the centrifugal switch and does not participate in the motor running. Features, high price, large capacity, high requirements for power quality, and cannot be used in places where the voltage is unstable.
YY Series Single-phase Asynchronous Motor Manufacturer
As a famous China YY series single-phase capacitor-run asynchronous motors Manufacturers and YY series single-phase capacitor-run asynchronous motors company, Bulletproof Motor has an annual production capacity of 100,000 sets of drivers and wholesale YY series aluminum housing single-phase capacitor-run asynchronous motors Online, AC motors are usually divided into AC generators, AC motors and synchronous cameras according to their functions. Due to the reversibility of the working state of the motor, the same motor can be used as both a generator and a motor. With the development of power electronics technology, microelectronics technology, digital control technology and control theory, the dynamic and static characteristics of the AC drive system can be completely Comparing with DC drive system, AC drive system has been widely used, and the replacement of DC drive by AC drive has gradually become a reality.
Technical Data: WhatsApp
|Type||Power||Current||Speed||Eff||Power Factor||Starting current/Rated current||Starting torque/Rated torque||Max torque/Rated tprque|
|220V 50HZ 2P|
|220V 50HZ 4P|

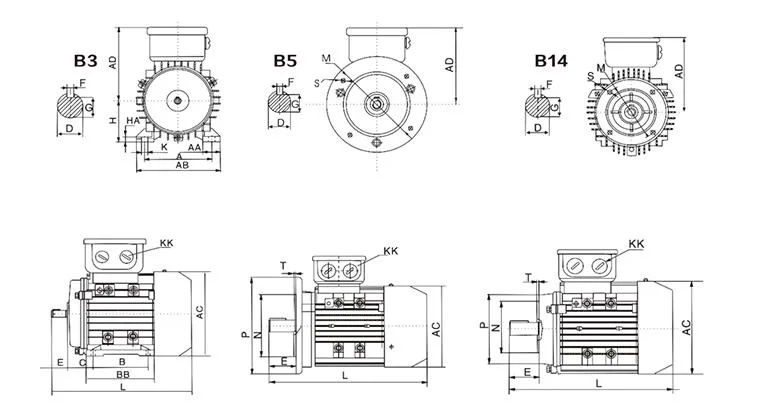

Installation Dimension: WhatsApp
|Frame||IMB3||IMB14 IMB34||IMB5 IMB35||IMB3|
