MY Series Aluminum Housing Single Phase Capacitor-Run Induction Motor

MY series is single-phase motor, capactitor-run motor, asynchronous motor and ac induction motor. It is totally enclosed fan-cooled type. MY Series Aluminum housing single-phase capacitor-run asynchronous motors, with the international latest design, are made of quality materials and meet the relative standards of IEC. MY series motors have following features: good performance, safe and reliable operation, nice appearance, convenient maintenance low noise, slight vibration, low temperature rise, high overload capacity, light weight and simple construction.

The electric motor has a low starting torque, it is 0.3~0.7 times as rated torque. It can be used in a multitude application where the low starting torque, such as home eletric appliances, household appliances, air compressor, pumps, blower, fan and recording meters, etc.

Technical Features of MY Series Aluminum Housing Single Phase Capacitor-Run Induction Motor

1. Execution standard: IEC
2. Mounting size: IEC
3. Frame size: H56~H100 Pole: 2P, 4P
4. Rated power: 0.09KW~3KW
5. Voltage: 110V, 115V, 220V, 230V, 240V
6. Frequency: 50Hz, 60Hz
7. Operation mode: S1 (continuous running)
8. Enclosed protect class: IP54, IP55
9. Insulation class: B
10. Cooling method: IC0141

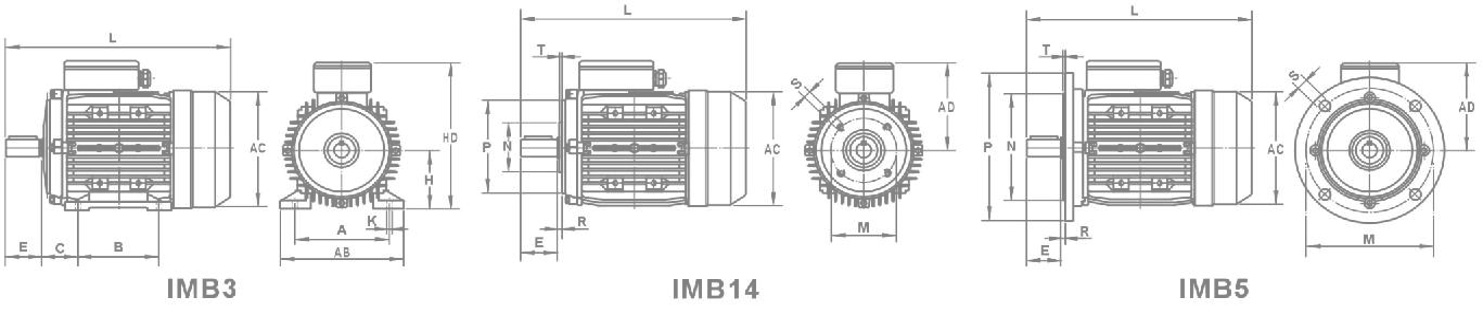

11. Mounting types: IM-B3, B5, B35, B14, B34, V1, V3 ,V5, V6, V18, V19 , V36.
12. Ambient conditions: Altitude is lower than 1000m; Ambient temperature is -15~40Cº
13. Color: Any Color
14. Protect Feature: Totally Enclosed
15. Winding: 100% Copper Wire
16. Output: 100% Output Power
17. Customization is available

The Difference of MC ML MY Aluminum Housing Single-Phase Motor

MC series motor is with 1 capacitor, which is capacitor-start type, which can supply high starting torque.

ML series motor is with 2 capacitors, which are capacitor-start and capacitor-run. They can supply high starting torque and long time stable running performances

MY series motor is with 1 capacitor, which is capacitor-run type, which can supply long time stable running performances.

MY Series Aluminum Housing Single Phase Capacitor-Run Induction Motor Manufactuer

Bulletproof Motor always adhere to the policy of high standard, high quality and high efficiency and devoted ourselves to the research and sales of the qenerators, machine tools and other spare parts. It is a creative technology company comprising the manufacture, sales and research of electric motors and generators. Our products in”Bulletproof Motor” brand are exported to more than 50 countries and districts in Europe, South America, Middle East, South Asia, Southeast Asia etc. We have steady sales channels and more than 50 agencies both at home and abroad.It is the leading company in the industry and the total annual sales is Keeping growing.

Note: the inquiry or order need to indicate the electric motor model(including frame center’s height,frame length, core length, No. of poles, power, voltage, frequency) ,Mounting method, terminal box location(top/side).

If customers have special request for voltage, frequency and other, can be mentioned in the inquiry or order.
