YUZL series vertical vibration motor is a new type vertical vibration motor,and it replaces the old vibration mode. YUZL series vertical vibration motor uses advanced single-flange structural, sophisticated design, reliable and safety operation. It owns high durability. Single-flange vibration motor has two forms, they are upper flange and medium flange. There are some differences in the application, the upper flange has big knockout press, it is also used in the filter vibration screening, in other words it is a vibration motor for screening liquids. The medium flange has a big exciting force and often is used for screening the powdered materials. The single flange makes convenient maintenance and installation of vertical vibration motor, and it can mitigate the weight of machine, reduce the overall size, simplified the structure of the host, reduce the cost, that can make the machine handles a large amount of materials. The exciting force can be adjusted easily in a certain range, meet the needs of various operations.
YZUL Series Vertical Vibration Motor Application:
YZUL series vertical vibration motor, three-phase asynchronous motor or induction motor, is vibration source of all types of general-purpose machinery. Such as vibrating feeder, vibrating conveyor, vibrating dryer, vibrating screen, vibrating hopper and vibration platform. It can be widely used in electricity, building materials, grain, coal, mining, metallurgy, chemical, cement and other industries.
YZUL Series Vertical Vibration Motor Working principle:
The YZUL type vibration motor is a vibration source combined with the power source and vibration source. The vibrating motor is equipped with a set of adjustable eccentric blocks at the two ends of the rotor shaft, and the exciting force is generated by the centrifugal force generated by the high-speed rotation of the shaft and the eccentric block. Which is easy to adjust the horizontal and vertical direction, inclination of multiple excitation force by the motor itself, the rapid formation of plane material dispersion, center aggregation, planar rotation, 3D rotation and various motion modes, used to control the discharge speed and processing accuracy index of mechanical properties, with its unique structural characteristics to adapt to different mechanical on the source of vibration requirements.

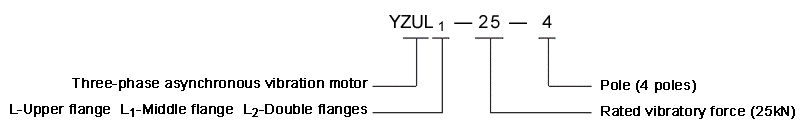

YZUL Series Vertical Vibration Motor Type Identifiers:
YZUL Series Vertical Vibration Motor Specifications:
Working temperature: not more than 40 ℃, Altitude not more than 1000 meters
Voltage: 380V(Also can supply 415V, 440V, 460V,660V)
Level of protection: IP54 IP55
Wire Connection: Y or Δ
Insulation grade: B、F
Working method: S1(continuous)
Installation Direction：Vertical Installation
YZUL Series Vertical Vibration Motor Features:
1. Low noise and energy.High efficiency.
2. Small volume,light weight,quick set-up .
3. Easy installation,simple maintenance and long working life
4. Stepless adjustment of exciting force and wide range of adjustment.Vibration transmit without machine.
YZUL Series Vertical Vibration Motor Advantage:
Powerful exciting force YZUL vibrating motor has a wide range of exciting force from 3KN to 300KN.
Longer service time: High purity copper wire is used for better performance of the motor compared with the Normal Aluminium coil.
Lower heat: The rotor and stator are made of excellent silicon steel sheet. The heat dissipation is limited, which enables the 24-hour continuous working available.
Durable bearing: Durable ZWZ bearing or HRB bearing gurantee the stable motor operation and longer service time. Import NSK bearing or SKF bearing could be customized and mounted too according to clients requirements.
Higher adaptation: YZUL series vibrating motor could be used in extreme temperate from low temperature -40℃ to high temperature 40℃. The fine powder environment could be used too due to its perfect sealing structure.
Customizing service support: A.The vibrating motor specifications could be customized. Different Voltage condition 120V, 220V, 380V, 415V, 450V. 2 pole 3000rpm, 4 pole 1500rpm, 6 pole 1000rpm. Single phase or 3 phase 50HZ or 60HZ are all available according to clients special requirements. B: The vibrating motor size could be customized too according to clients’ requirements.
Environment-friendly: Simple structure, less raw material consumption. less power consumption, fully enclosed structure. Low noise, all provide the workers with a more healthy and comfortable working atmosphere.

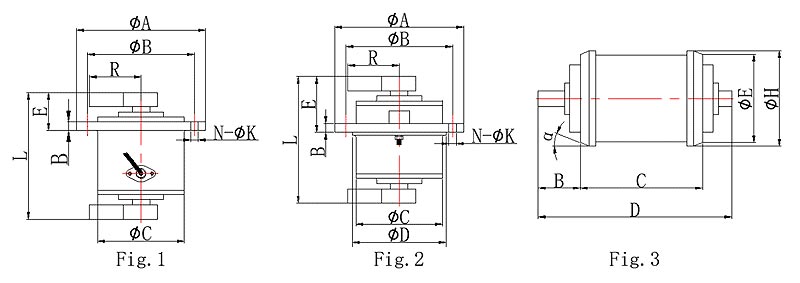

Installation Dimension: WhatsApp
Technical Data: WhatsApp
|2 Poles 50Hz/60Hz 3000rpm/3600rpm|
|4 Poles 50Hz/60Hz 1500rpm/1800rpm|
