Explosion-proof Vibration Motor

Rated Power: 0.18kW-9.5kW
Vibration Force: 3Kn-130Kn
Voltage: 380V/415V/660V/Customize
Frequency: 50Hz/60Hz/as required

Introduction: WhatsApp

YBZ series high-efficiency dust-proof flame-proof three-phase asynchronous vibration motors are fully sealed and the excitation force is adjustable. Explosion-proof flameproof, low noise, reliable operation, etc., can work under any dust conditions with explosion-proof requirements, suitable for factory environment ⅡA Gb, ⅡB Gb and dust environment in Zone 21 and Zone 22.

YBZ series high-efficiency dust-proof explosion-proof three-phase asynchronous motors (hereinafter referred to as vibration motors) are squirrel-cage three-phase asynchronous motors. It has full sealing, adjustable excitation force, explosion-proof flameproof, low noise, reliable operation, etc. It can work under any dust conditions with explosion-proof requirements.

The explosion-proof performance of this series of vibration motors complies with the provisions of GB3836.1-2010 “Explosive Environment Part 1: General Requirements for Equipment” and GB3836.2-2010 “Explosive Environment Part 2: Equipment Protected by Flameproof Enclosure” d “”.

YBZ Series High-efficiency Dust-proof Anti-explosion Three-phase Asynchronous Vibration Motor Operating conditions

Manufacturer: Bulletproof Motor
Rated voltage: 380V, 660V, 380V/660V
Motor power: 0.18-9.5kw
Speed: 2-8 stages
Protection level: IP65
Insulation grade: F
Cooling mode: IC410
Energy consumption: level 3
Explosion-proof identification: Exd Ⅱ AT4Gb and Exd Ⅱ BT4Gb, ExtD A21 IP65 T130 ℃
Working mode :S1 (continuous working system)
Working environment: no more than 1000 meters above sea level. Highest do not exceed 40 ℃, the lowest temperature was -20 ℃.
Installation method: horizontal and vertical
Installation dimension: comply with national standard and international IEC standard.

Adjustment of excitation force:

Each output shaft of the vibration motor has a fixed eccentric block and an adjustable eccentric block. Adjusting the angle between the adjustable eccentric block and the fixed eccentric block can change the magnitude of the exciting force. When leaving the factory, the included angle between the adjustable eccentric block and the fixed eccentric block is 0 degrees, and the excitation force at this time is the rated excitation force F of the vibration motor. The excitation force at different angles is shown in the table. When adjusting the excitation force, the adjustable eccentric blocks on the outer end of the shaft on both ends of the vibration motor should be oriented in the same direction, and the two ends should be adjusted at the same angle.

Manufacturer of Vibratory and Unbalance Vibrating Motors

Our Vibration motor specifications are complete, suitable for American insert 110V, Europe 220V, good operation effect and it is worth recommending! vibration motor has a wide range of applications. It solves the problem of material classification in our company and is very useful.

Vairous Mountting Option for most kinds of applications

Horizontal vibration motor is the installation of a set of adjustable eccentric block at both ends of the rotor shaft, and the eccentric shaft by the centrifugal force generated by high-speed rotation to get exciting force. Vertical vibrating motor parts bear temperature rise in long continuous operation can be effectively controlled, so that the vertical vibration motor has a specialty life.

Vibration Motors We Supply

We can send you more vibrating motor specification if we have reviced your inquiry. The best quote will be sent at the same time. Industrial Vibration Motors for use on bulk processing equipment such as vibrating feeders, conveyors, vibrating tables, screens, bulk bag fillers, bulk bag unloaders and more

We supply Small vibration motors to large, industrial vibration motor on three phase, powerful vibration motor with bigger horsepower, single phase vibration motor for home or light application use. variable speed vibration motor, vibrating motor for vibrating table, vibrating motor for hopper.

Installation Dimension: WhatsApp

YBZ Horizontal Explosion-proof Vibration Motor

YBZ Vertical Explosion-proof Vibration Motor

Technical Data: WhatsApp

YBZ Horizontal Explosion-proof Vibration Motor

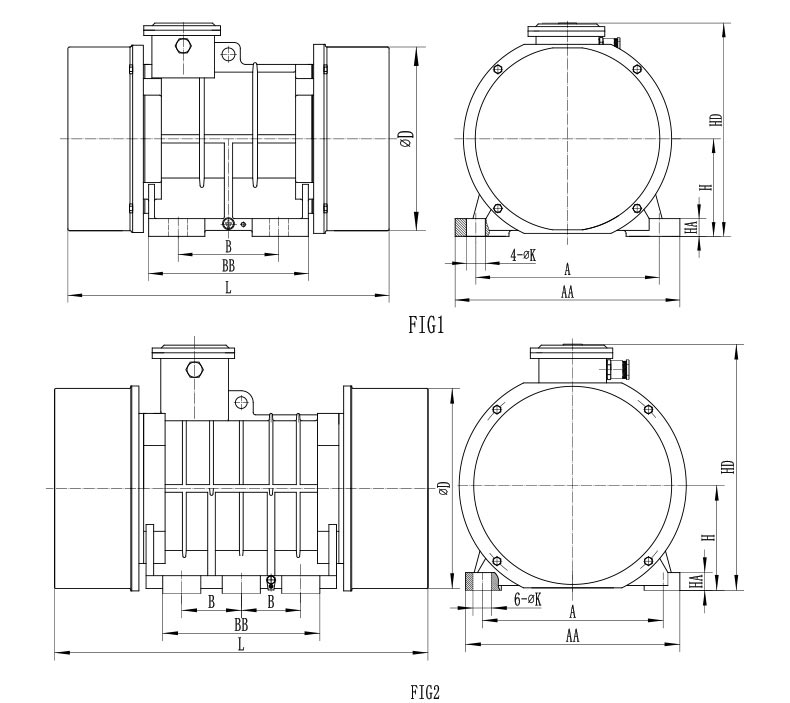

Model Force(KN) Power(KW) current(A) Speed(r/min) Installation size(mm) Dimensions(mm) Mounting Bolt Size Weight(Kg) Outline drawing
A B H AA BB HA HD L D K
3-Phase 2-Pole Horizontal Explosion-proof Vibration Motor
YBZ-110L1-2 3 0.25KW 0.77 2886 180 110 110 218 166 18 268 390 195 18 M16 26 FIG1
YBZ-110L2-2 5 0.37KW 1.1 2862 180 110 110 218 166 18 268 390 195 18 M16 28 FIG1
YBZ-120L1-2 3 0.25KW 0.73 2906 220 140 120 260 190 20 290 444 220 22 M20 41.5 FIG1
YBZ-120L2-2 5 0.37KW 1.05 2894 220 140 120 260 190 20 290 444 220 22 M20 42.5 FIG1
YBZ-120L3-2 8 0.55KW 1.39 2901 220 140 120 260 190 20 290 444 220 22 M20 43 FIG1
YBZ-120L4-2 10 0.75KW 1.87 2890 220 140 120 260 190 20 290 444 220 22 M20 44 FIG1
YBZ-120L5-2 15 1.1KW 2.59 2888 220 140 120 260 190 20 290 484 220 22 M20 47 FIG1
YBZ-140L1-2 20 1.5KW 3.41 2904 260 150 140 310 230 25 323 522 259 26 M24 68 FIG1
YBZ-165L1-2 30 2.2KW 4.95 2925 310 170 165 380 270 30 372 543 310 33 M30 92 FIG1
YBZ-165L2-2 40 3KW 6.34 2925 310 170 165 380 270 30 372 543 310 33 M30 114 FIG1
YBZ-200L1-2 50 3.7KW 7.98 2894 350 220 200 420 310 31 444 666 373 39 M36 160 FIG1
3-Phase 4-Pole Horizontal Explosion-proof Vibration Motor
YBZ-110L1-4 3 0.18KW 0.66 1420 180 110 110 218 166 18 268 390 195 18 M16 32.5 FIG1
YBZ-110L2-4 5 0.25KW 0.88 1426 180 110 110 218 166 18 268 390 195 18 M16 34 FIG1
YBZ-120L1-4 3 0.18KW 0.69 1450 220 140 120 260 190 20 290 444 220 22 M20 43 FIG1
YBZ-120L2-4 5 0.25KW 0.91 1445 220 140 120 260 190 20 290 444 220 22 M20 45 FIG1
YBZ-120L3-4 8 0.37KW 1.1 1444 220 140 120 260 190 20 290 444 220 22 M20 48 FIG1
YBZ-120L4-4 10 0.55KW 1.65 1442 220 140 120 260 190 20 290 444 220 22 M20 50 FIG1
YBZ-120L5-4 15 0.75KW 1.99 1435 220 140 120 260 190 20 290 484 220 22 M20 55 FIG1
YBZ-140L1-4 15 0.75KW 2.2 1458 260 150 140 310 230 25 323 522 259 26 M24 71 FIG1
YBZ-140L2-4 20 1.1KW 2.97 1458 260 150 140 310 230 25 323 522 259 26 M24 73 FIG1
YBZ-165L1-4 30 1.5KW 4.5 1463 310 170 165 380 270 30 372 543 310 33 M30 101 FIG1
YBZ-165L2-4 40 1.8KW 4.51 1462 310 170 165 380 270 30 372 543 310 33 M30 108 FIG1
YBZ-200L1-4 50 2.2KW 5.47 1448 350 220 200 420 310 31 444 666 373 39 M36 173.5 FIG1
YBZ-220L2-4 75 3.7KW 9.46 1466 380 125 220 450 370 37 471 712 419 39 M36 292 FIG2
YBZ-220L3-4 100 6.3KW 15.4 1471 380 125 220 450 370 37 471 712 419 39 M36 298 FIG2
YBZ-240L1-4 100 6.3KW 14.4 1475 440 140 240 530 396 40 509 865 453 45 M42 347 FIG2
YBZ-240L2-4 130 7.5KW 16.7 1473 440 140 240 530 396 40 509 865 453 45 M42 410 FIG2
3-Phase 6-Pole Horizontal Explosion-proof Vibration Motor
YBZ-110L1-6 3 0.25KW 0.94 933 180 110 110 218 166 18 268 410 195 18 M16 37 FIG1
YBZ-120L1-6 3 0.25KW 0.91 948 220 140 120 260 190 20 290 444 220 22 M20 46.5 FIG1
YBZ-120L2-6 5 0.37KW 1.32 945 220 140 120 260 190 20 290 484 220 22 M20 50 FIG1
YBZ-140L1-6 8 0.55KW 1.79 962 260 150 140 310 230 25 323 522 259 26 M24 73 FIG1
YBZ-140L2-6 10 0.75KW 2.42 960 260 150 140 310 230 25 323 522 259 26 M24 75 FIG1
YBZ-140L3-6 15 1.1KW 3.19 960 260 150 140 310 230 25 323 542 259 26 M24 87 FIG1
YBZ-165L1-6 15 1.1KW 3.41 976 310 170 165 380 270 30 372 543 310 33 M30 110 FIG1
YBZ-165L2-6 20 1.5KW 4.18 972 310 170 165 380 270 30 372 543 310 33 M30 120 FIG1
YBZ-165L3-6 30 2.2KW 5.72 960 310 170 165 380 270 30 372 583 310 33 M30 138 FIG1
YBZ-200L1-6 30 2.2KW 5.74 964 350 220 200 420 310 31 444 666 373 39 M36 183 FIG1
YBZ-200L2-6 40 3KW 7.9 967 350 220 200 420 310 31 444 666 373 39 M36 204 FIG1
YBZ-200L3-6 50 3.7KW 9.42 965 350 220 200 420 310 31 444 666 373 39 M36 221 FIG1
YBZ-220L1-6 50 3.7KW 9.45 969 380 125 220 450 370 37 471 712 419 39 M36 309 FIG2
YBZ-220L2-6 75 5.5KW 13.9 971 380 125 220 450 370 37 471 772 419 39 M36 358 FIG2
YBZ-240L1-6 75 5.5KW 13.2 985 440 140 240 530 396 40 509 865 453 45 M42 425 FIG2
YBZ-240L2-6 100 7.5KW 17.8 986 440 140 240 530 396 40 509 865 453 45 M42 454 FIG2
YBZ-240L2-6 100 7.5KW 17.8 986 440 140 240 530 396 40 509 865 453 45 M42 454 FIG2
YBZ-240L3-6 120 9.5KW 21.7 985 440 140 240 530 396 40 509 865 453 45 M42 462 FIG2
3-Phase 8-Pole Horizontal Explosion-proof Vibration Motor
YBZ-140L-8 5 0.37KW 1.36 704 260 150 140 310 230 25 323 522 259 26 M24 75 FIG1
YBZ-165L-8 10 0.75KW 2.44 717 310 170 165 380 270 30 372 543 310 33 M30 109 FIG1
YBZ-200L-8 20 1.5KW 4.88 718 350 220 200 420 310 31 444 666 373 39 M36 183 FIG1
YBZ-220L-8 30 2.2KW 3.97 728 380 125 220 450 370 37 471 712 419 39 M36 315 FIG2
YBZ-240L-8 50 3.7KW 11.3 734 440 140 240 530 396 40 509 865 453 45 M42 451 FIG2

YBZ Vertical Explosion-proof Vibration Motor

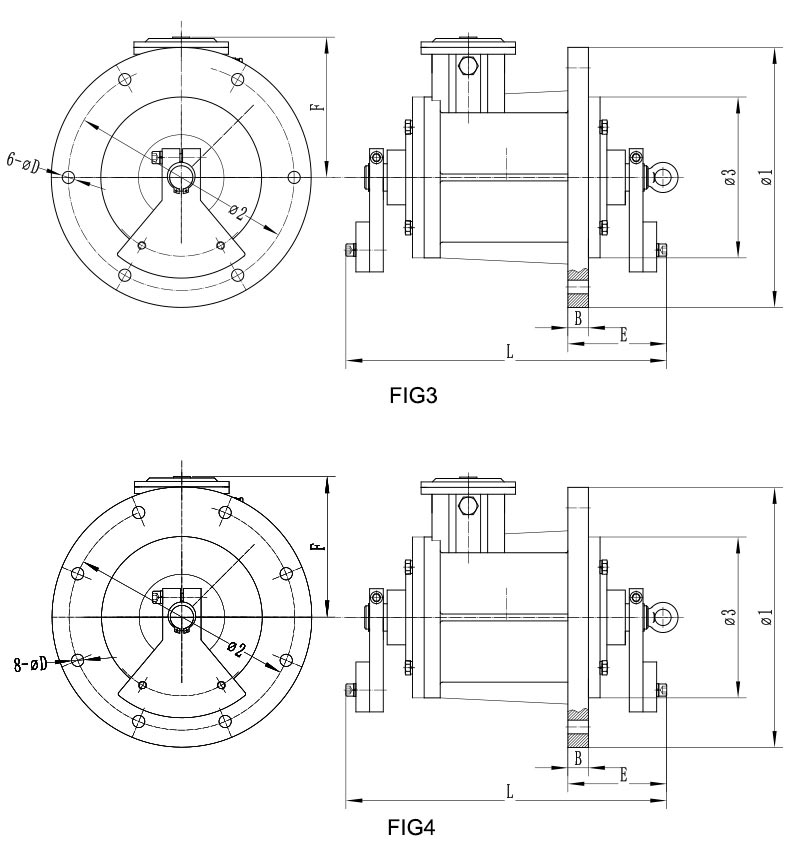

Model Force(KN) Power(KW) current(A) Speed(r/min) Dimensions(mm) Outline Drawing
Φ1 Φ2 Φ3 B N D L E F
3-Phase 2-Pole Vertical Explosion-proof Vibration Motor
YBZ-110L1-2 3 0.25KW 0.77 2886 300 252 180 20 6 14 357 91 160 FIG3
YBZ-110L2-2 5 0.37KW 1.1 2862 300 252 180 20 6 14 357 91 160 FIG3
YBZ-120L4-2 10 0.75KW 1.87 2890 310 258 210 22 6 18 386 100 175 FIG3
YBZ-120L5-2 15 1.1KW 2.59 2888 380 330 230 26 6 18 407 111 185 FIG3
YBZ-140L1-2 20 1.5KW 3.41 2904 380 330 230 26 6 26 407 111 185 FIG3
YBZ-165L1-2 30 2.2KW 4.95 2925 400 345 275 30 6 26 430 122 200 FIG3
YBZ-200L1-2 50 3.7KW 7.98 2894 440 390 316 30 8 26 495 142 235 FIG4
3-Phase 4-Pole Vertical Explosion-proof Vibration Motor
YBZ-110L1-4 3 0.18KW 0.69 1450 300 252 180 20 6 14 400 120 160 FIG3
YBZ-110L2-4 5 0.25KW 0.91 1445 300 252 180 20 6 14 400 120 160 FIG3
YBZ-120L4-4 10 0.55KW 1.65 1442 310 258 210 22 6 18 425 128 175 FIG3
YBZ-140L1-4 15 0.75KW 2.2 1458 380 330 230 26 6 18 450 137 185 FIG3
YBZ-140L2-4 20 1.1KW 2.97 1458 380 330 230 26 6 26 450 137 185 FIG3
YBZ-165L1-4 30 1.5KW 4.5 1463 400 345 275 30 6 26 470 150 200 FIG3
YBZ-200L1-4 50 2.2KW 5.47 1448 440 390 316 30 8 26 540 172 235 FIG4
3-Phase 6-Pole Vertical Explosion-proof Vibration Motor
YBZ-120L1-6 3 0.25KW 0.91 948 310 258 210 22 6 18 410 100 175 FIG3
YBZ-120L2-6 5 0.37KW 1.32 945 310 258 210 22 6 18 420 100 175 FIG3
YBZ-140L2-6 10 0.75KW 2.42 960 380 330 230 26 6 18 455 137 185 FIG3
YBZ-165L1-6 15 1.1KW 3.41 976 400 345 275 30 6 26 470 150 200 FIG3
YBZ-165L2-6 20 1.5KW 4.18 972 400 345 275 30 6 26 470 150 200 FIG3
YBZ-200L1-6 30 2.2KW 5.74 964 440 390 316 30 8 26 540 172 235 FIG4
