YZO Vibration Motor

Output Range: 0.065KW~22KW
Vibration Force: 0.7Kn-300Kn
Voltage: 380V/415V/660V/Customize
Frequency: 50Hz/60Hz/as required

Introduction: WhatsApp

YZO series vibrator motor for vibrating equipments

YZO series three-phase asynchronous motor vibration source set the power source and vibration source as a whole, vibrating motor is a set of adjustable eccentric block at both ends of the shaft of the shaft of the rotor shaft, the centrifugal force generated by the eccentric block is used to get the exciting force, is a versatile energy efficient excitation source, small, exciting force, reliable structure, easy maintenance, referred to as the vibration motor.

Vibrator motors are different with ordinary motors, when the vibration motor is produced, the clearance between the shaft and the bearing is different from that of the ordinary motor. The shaft and the bearing of the ordinary motor must be closely matched, and the clearance between the shaft and the bearing in the vibration motor is a sliding fit. There is a gap of 0.01-0.015mm in the middle. Of course, you will feel that the shaft will move left and right during maintenance. In fact, this clearance fit has its important role.

YZO Vibration Motor Application

The products are widely used in mining, coal, electricity, chemicals, food processing, metallurgy, casting, light industry, medicine and other industries. Is to achieve powdered, granular, massive mechanization and other granular materials screening, conveying, crushing, filling, ideal excitation source anti-clogging. The machine can be used stand-alone, multi-machine can also be used in combination.

Development of YZO series vibrator motors:

After nearly 40 years of development, China has hundreds of yzo series vibration motor manufacturers and suppliers. YZO series vibration motor is the most widely used vibration motor in China. The quality of YZO series vibration motor has been greatly improved, and the product quality of some manufacturers has reached the level of similar products in the West.

YZO Vibration Motor Model Description

YZO series vibration motor model (as an example) consists of three parts

YZO-5-6
YZO — vibration motor
5 — maximum excitation force (kN)
6 — Poles

YZO Vibration Motor Features & Advantages:

YZO series Vibrating Motor is special asynchronous motors with power and vibration sources, which are simple in structure and easy to use. It has the following features:

(1) small size, light weight, convenient installation and low operating cost

(2)scientific design, simple structure, low noise, long service life

(3) adjustable excitation force

(4) stable vibration frequency, high efficiency, no need for complex transmission device

(5) strong vibration resistance, large power distance and low noise

(6) fully enclosed structure, suitable for various occasions with high dust content

(7)Can be used in stand-alone, multi-unit synthesis of various vibration forms

(8)Suitable for vibrating feeders, vibrating conveyors, vibrating screens, etc.

(9)The weight density and design this vibratory motor has a good vibratory output force (kN) with a high starting torque and low electrical power consumption;

(10)YZO universal vibrator motors are produced according to standardization and serialization, with stable quality, reliability and strong versatility, which can meet the needs of various vibration equipment.

(11)YZO universal vibrator motors can be customized according to customers’ needs, and can be used to replace other brands of vibration motors, such as Invicta BLZ vibration motor, HSRV vibration motor, Invicta mvsi vibration motor, Brecon vibration motor, o.m.b vibration motor, etc.

(12)YZO universal vibrator motors are produced according to the quality standards of China and the European Union, and adopt the advanced and high-quality spare parts and processing technology of China, with long service life.

(14)Relying on China’s huge manufacturing supply chain, we have more competitive spare parts supply, which can ensure stable supply and provide more competitive prices.

YZO Vibration Motor Use & Maintenance:

When this series of vibrating motors meet the following conditions for continuous rated output excitation force.

(1) vibration acceleration: no more than 7g (g: acceleration of gravity)
(2) Power frequency: 50HZ
(3) Voltage: 380v
(4) Temperature rise: less than 80K (resistance method)
(5) The ambient temperature shall not exceed 40 ℃(if it exceeds 40℃, the power shall be reduced);
(6) The allowable temperature of the bearing (thermometer method) shall not exceed 95℃。
(7) The altitude of the area used shall not exceed 1000m. If the altitude exceeds 1000m, the temperature appreciation shall be reduced by 0.5oc for every 100m increase, but the temperature shall not exceed 4000m.
(8) The ambient air shall be free of conductive dust and shall not contain flammable, explosive and corrosive gases.

YZO Vibration Motor Manufacturer

Bulletproof Motor can offer you YZO vibrator motors. If you need customized vibrator motors, we can also offer them. Until now, we have produced many OEM vibrator motors to replace other brands. Benefits of products to buyers:

1. Help customers reduce costs. We know that to help customers is to help ourselves, and cooperation is to help each other. As a supplier, our biggest help to customers is to provide good products and reduce the purchasing cost of customers as much as possible. So we only get a little profit in each vibration motor, and provide the best price to customers as far as possible.

2. Stable supply. China as the world’s largest manufacturing country, national security, social stability, we have the most powerful supply chain, we can ensure stable product quality, reliable, stable product supply.

3. Convenient transportation, low transportation cost and timely delivery. China has developed air and sea transportation, the best and largest Shanghai port in the world, low sea transportation cost and world-class logistics system, which ensure the timely delivery of products.

4. It is convenient for customers to visit. In an open China, customers from all over the world are welcome to visit. We can provide invitation letters for customers and help them visit.

5. We provide perfect after-sales quality assurance. If there are quality problems during the warranty period, we will provide free accessories or maintenance costs.

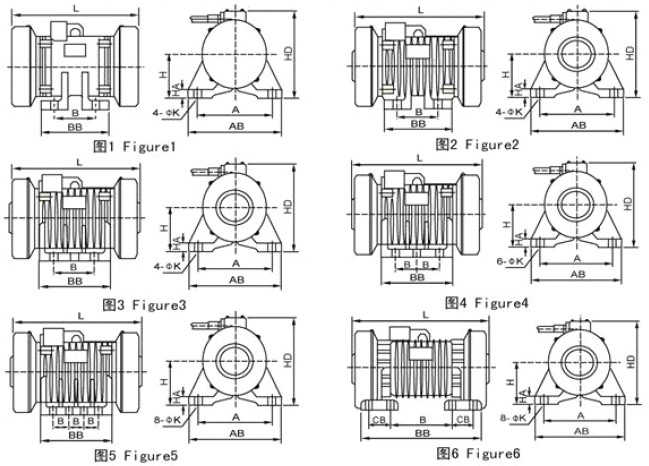

Installation Dimension: WhatsApp

YZO Vibration Motor Installation

Technical Data: WhatsApp

YZO Series Vibration Motor Technical Parameters And Installation Dimensions
Three-phase 2 Pole 380V 50HZ 2900r/min
Type Force (KN) Power (KW) Current (A) Installation Size(mm) Mounting Bolt Size Weight(KG) Figure Number
A B H AB BB HA HD L CB K
YZOL-0.7-2 0.7 0.065KW 0.27 106 68 65 150 105 15 162 220 9 4*M8 6.8 1
YZOL-1-2 1 0.09KW 0.32 106 68 65 150 105 15 162 220 9 4*M8 7.5 1
YZOL-2-2 2 0.18KW 0.65 125 90 75 150 140 15 170 240 13 4*M12 8 1
YZOL-3-2 3 0.25KW 0.78 125 90 75 150 140 15 170 240 13 4*M12 8.7 1
YZO-1-2 1 0.09KW 0.32 120 40 65 150 70 12 155 220 10 4*M8 10 1
YZO-2-2 2 0.18KW 0.65 150 90 80 180 130 13 190 260 14 4*M12 16 1
YZO-4-2 4 0.3KW 0.90 150 90 80 180 130 13 190 260 14 4*M12 20 1
YZO-5-2 5 0.37KW 1.10 180 110 90 220 155 18 200 300 18 4*M16 25 1
YZO-7-2 7 0.5KW 1.36 180 110 100 220 155 18 210 310 18 4*M16 30 1
YZO-10-2 10 0.75KW 1.96 220 140 120 265 195 20 230 350 22 4*M20 41 2
YZO-16-2 16 1.1KW 2.55 240 140 135 305 200 22 260 420 26 4*M24 65 2
YZO-20-2 20 1.5KW 3.67 260 150 140 320 215 23 290 440 26 4*M24 76 2
YZO-25-2 25 2KW 4.50 260 150 140 320 215 23 290 440 26 4*M24 85 2
YZO-30-2 30 2.2KW 5.10 310 170 160 380 240 30 340 480 33 4*M30 105 2
YZO-50-2 50 3.7KW 8.43 350 220 180 430 300 33 380 530 39 4*M36 180 3
YZO-63-2 63 4.5KW 10.31 380 250 200 455 330 38 400 610 39 4*M36 219 3
YZO-80-2 80 5.5KW 13.15 380 250 200 455 330 38 400 610 39 4*M36 234 3
YZO-100-2 100 9KW 15.85 440 280 220 530 380 38 435 690 45 4*M42 330 3
YZO-130-2A 130 12KW 22.65 540 340 260 635 690 40 560 820 130 39 8*M36 620 6



Three-phase 4 Pole 380V 50HZ 1430r/min
Type Force (KN) Power (KW) Current (A) Installation Size(mm) Mounting Bolt Size Weight(KG) Figure Number
A B H AB BB HA HD L CB K
YZOL-1-4 1 0.09KW 0.35 106 68 65 150 105 15 162 220 9 4*M8 10.3 1
YZOL-2-4 2 0.12KW 0.49 125 90 75 150 140 15 170 250 13 4*M12 11.5 1
YZOL-3-4 3 0.15KW 0.60 125 90 75 150 140 15 170 250 13 4*M12 12 1
YZO-1-4 1 0.09KW 0.35 120 40 65 150 70 12 155 230 10 4*M8 11 1
YZO-2.5-4 2.5 0.12KW 0.49 150 90 80 180 130 13 190 250 14 4*M12 18 1
YZO-4-4 4 0.18KW 0.68 150 90 80 180 130 13 190 250 14 4*M12 21 1
YZO-5-4 5 0.25KW 0.85 180 110 90 220 150 18 200 320 18 4*M16 27 1
YZO-8-4 8 0.37KW 1.18 220 140 120 265 195 20 240 360 22 4*M20 45 2
YZO-10-4 10 0.55KW 1.76 220 140 120 265 195 20 240 380 22 4*M20 48 2
YZO-13-4 13 0.65KW 2.07 220 140 120 265 195 20 240 400 22 4*M20 57 2
YZO-16-4 16 0.75KW 2.17 260 150 140 320 215 23 290 430 26 4*M24 75 2
YZO-17-4 17 0.85KW 2.20 240 140 135 305 200 22 260 420 26 4*M24 66 2
YZO-20-4 20 1.1KW 3.20 260 150 140 320 205 23 290 440 26 4*M24 81 2
YZO-26-4 26 1.4KW 3.35 260 150 140 320 205 23 290 440 26 4*M24 87 2
YZO-30-4 30 1.5KW 3.85 310 170 160 380 240 30 330 480 33 4*M30 110 2
YZO-40-4 40 1.85KW 4.50 310 170 160 380 240 30 330 520 33 4*M30 135 2
YZO-50-4 50 2.2KW 5.57 350 220 180 430 300 33 380 530 39 4*M36 176 3
YZO-63-4 63 3KW 7.20 350 220 180 430 300 33 390 550 39 4*M36 185 3
YZO-80-4 80 3.7KW 8.90 380 250 200 455 330 38 400 600 39 4*M36 260 3
YZO-90-4 90 5.5KW 12.40 380 250 200 455 330 38 400 600 39 4*M36 280 3
YZO-100-4 100 6.3KW 14.18 440 280 220 530 410 38 435 715 45 4*M42 450 3
YZO-130-4 130 7.5KW 17.01 460 140 250 550 400 40 490 810 45 6*M42 590 4
YZO-130-4A 130 7.5KW 17.01 540 340 260 635 690 40 590 890 130 39 8*M36 645 6
YZO-160-4 160 10KW 22.68 460 140 250 550 400 40 490 830 45 6*M42 630 4
YZO-160-4A 160 10KW 22.68 540 340 260 635 690 40 590 890 130 39 8*M36 690 6
YZO-180-4 180 12KW 27.68 600 120 270 690 510 45 550 950 45 8*M42 810 5
YZO-210-4 210 16KW 31.50 600 120 270 690 510 45 550 970 45 8*M42 850 5
YZO-250-4A 250 18KW 39.05 630 420 300 740 840 48 680 1060 160 45 8*M42 1250 6
YZO-300-4A 300 22KW 47.66 630 420 300 740 840 48 680 1170 160 45 8*M42 1360 6
Three-phase 6 Pole 380V 50HZ 970r/min
Type Force (KN) Power (KW) Current (A) Installation Size(mm) Mounting Bolt Size Weight(KG) Figure Number
A B H AB BB HA HD L CB K
YZOL-0.7-6 0.7 0.08KW 0.32 106 68 65 150 105 15 162 230 9 4*M8 7.5 1
YZOL-1.5-6 1.5 0.12KW 0.50 125 90 75 150 140 15 170 250 13 4*M12 9 1
YZO-1.5-6 1.5 0.12KW 0.50 150 90 80 180 130 13 190 260 14 4*M12 18 1
YZO-2-6 2 0.15KW 0.65 150 90 80 180 130 13 190 260 14 4*M12 21 1
YZO-3-6 3 0.25KW 0.99 180 110 100 220 150 18 210 325 18 4*M16 27 1
YZO-5-6 5 0.37KW 1.37 220 140 120 265 195 20 235 375 22 4*M20 48 2
YZO-6-6 6 0.4KW 1.48 220 140 120 265 195 20 235 390 22 4*M20 50 2
YZO-8-6 8 0.55KW 2.05 240 140 135 305 200 22 260 420 26 4*M24 70 2
YZO-10-6 10 0.75KW 2.47 260 150 140 320 205 23 290 425 26 4*M24 78 2
YZO-16-6 16 1.1KW 3.37 260 150 140 320 215 23 290 485 26 4*M24 93 2
YZO-20-6 20 1.5KW 4.47 310 170 160 380 240 30 330 520 33 4*M30 120 2
YZO-26-6 26 1.85KW 5.58 310 170 160 380 240 30 330 550 33 4*M30 131 2
YZO-30-6 30 2.2KW 6.22 350 220 180 430 290 33 390 550 39 4*M36 182 3
YZO-40-6 40 3KW 8.38 350 220 180 430 300 33 390 580 39 4*M36 210 3
YZO-50-6 50 3.7KW 9.37 380 250 200 455 330 35 400 635 39 4*M36 267 3
YZO-63-6 63 4.5KW 11.50 380 250 200 455 330 38 400 670 39 4*M36 290 3
YZO-80-6 80 5.5KW 13.60 440 280 220 530 380 38 435 720 45 4*M42 365 3
YZO-100-6 100 6.3KW 15.58 460 140 220 550 410 40 450 770 45 6*M42 430 4
YZO-130-6 130 7.5KW 18.08 460 140 250 550 450 40 490 855 45 6*M42 590 4
YZO-130-6A 130 7.5KW 18.08 540 340 260 635 690 40 560 910 130 39 8*M36 686 6
YZO-150-6 150 10KW 22.89 520 118 250 610 500 42 500 940 39 8*M36 750 5
YZO-150-6C 150 10KW 22.89 460 118 250 550 470 42 500 940 39 8*M36 710 5
YZO-150-6A 150 10KW 22.95 540 340 260 635 690 42 590 930 130 39 8*M36 746 6
YZO-160-6 160 12KW 26.84 520 120 270 610 510 45 550 980 45 8*M42 825 5
YZO-180-6 180 14KW 33.36 600 120 270 690 510 45 550 980 45 8*M42 890 5
YZO-180-6C 180 14KW 33.36 520 120 270 610 510 45 550 1000 45 8*M42 860 5
YZO-210-6 210 16KW 36.93 520 120 270 610 510 45 550 1040 45 8*M42 950 5
YZO-250-6A 250 18KW 43.39 630 420 300 740 840 48 680 1170 160 45 8*M42 1250 6
YZO-300-6A 300 22KW 52.96 630 420 300 740 840 48 680 1210 160 45 8*M42 1320 6



Three-phase 8 Pole 380V 50HZ 720r/min
Type Force (KN) Power (KW) Current (A) Installation Size(mm) Mounting Bolt Size Weight(KG) Figure Number
A B H AB BB HA HD L CB K
YZO-1.5-8 1.5 0.18KW 0.85 180 110 90 220 150 18 200 320 18 4*M16 28 1
YZO-3-8 3 0.25KW 1.18 220 140 120 265 195 20 230 410 22 4*M20 60 2
YZO-5-8 5 0.37KW 1.75 260 150 140 320 205 23 290 450 26 4*M24 80 2
YZO-10-8 10 0.75KW 2.78 310 170 160 380 240 30 340 520 33 4*M30 120 2
YZO-16-8 16 1.1KW 4.07 310 170 160 380 240 30 340 520 33 4*M30 140 2
YZO-20-8 20 1.5KW 4.93 350 220 180 430 290 33 380 550 39 4*M36 182 3
YZO-30-8 30 2.2KW 6.70 380 250 200 460 330 35 400 635 39 4*M36 270 3
YZO-50-8 50 3.7KW 9.80 440 280 220 530 380 38 435 720 45 4*M42 370 3
YZO-63-8 63 4.5KW 11.58 460 140 220 550 410 40 450 770 45 6*M42 440 4
YZO-80-8 80 5.5KW 14.15 460 140 250 550 400 40 490 770 45 6*M42 600 4
YZO-80-8A 80 5.5KW 14.15 540 340 260 635 690 40 560 910 130 39 8*M36 686 6
YZO-100-8 100 6.3KW 16.60 460 140 250 550 400 40 490 810 45 6*M42 650 4
YZO-100-8A 100 6.3KW 16.60 540 340 260 635 690 40 560 910 130 39 8*M36 760 6
YZO-140-8 140 10KW 26.05 600 120 270 690 510 45 550 1000 45 8*M42 910 5
YZO-160-8 160 12KW 31.26 600 120 270 690 510 45 550 1040 45 8*M42 960 5
YZO-200-8A 200 14KW 39.86 630 420 300 740 840 48 680 1210 160 45 8*M42 1390 6
YZO-250-8A 250 18KW 51.40 630 420 300 740 840 48 680 1270 160 45 8*M42 1460 6
