YC Series Single Phase AC Electric Motor

YC series single-phase capacitor-start asynchronous motors is totally enclosed fan-cooled type. The starting torque of motors is 2-3 times as rated torque. it have following features: high starting torque, smooth running, low temperature rise, low noise and greater overload performance, meet the IEC standards..

YC series motors are of IP44 totally enclosed fan-cooled (TEFC) type, capacitor starting for rated output up to 4HP, on rated voltage and 50Hz, the starting torque is three times more than the rated torque while 60Hz is 2.75 times more. Capacitors start and run type for Motors 4HP and above, it have following features: high starting torque, smooth running, low temperature rise, low noise and greater overload performance.

YC Series Single Phase AC Electric Motor Standard Features

Type: YC Single Phase Induction Motor
Rated output: 0.12~7.5kW, 0.16~10HP
Rated voltage: 110V, 115V, 220V, 230V, 240V
Rated frequency (Speed): 50Hz (Synchronous speed 3000/1500 r/min), 60Hz (Synchronous speed 3600/1800 r/min)
No. of poles: 2P, 4P

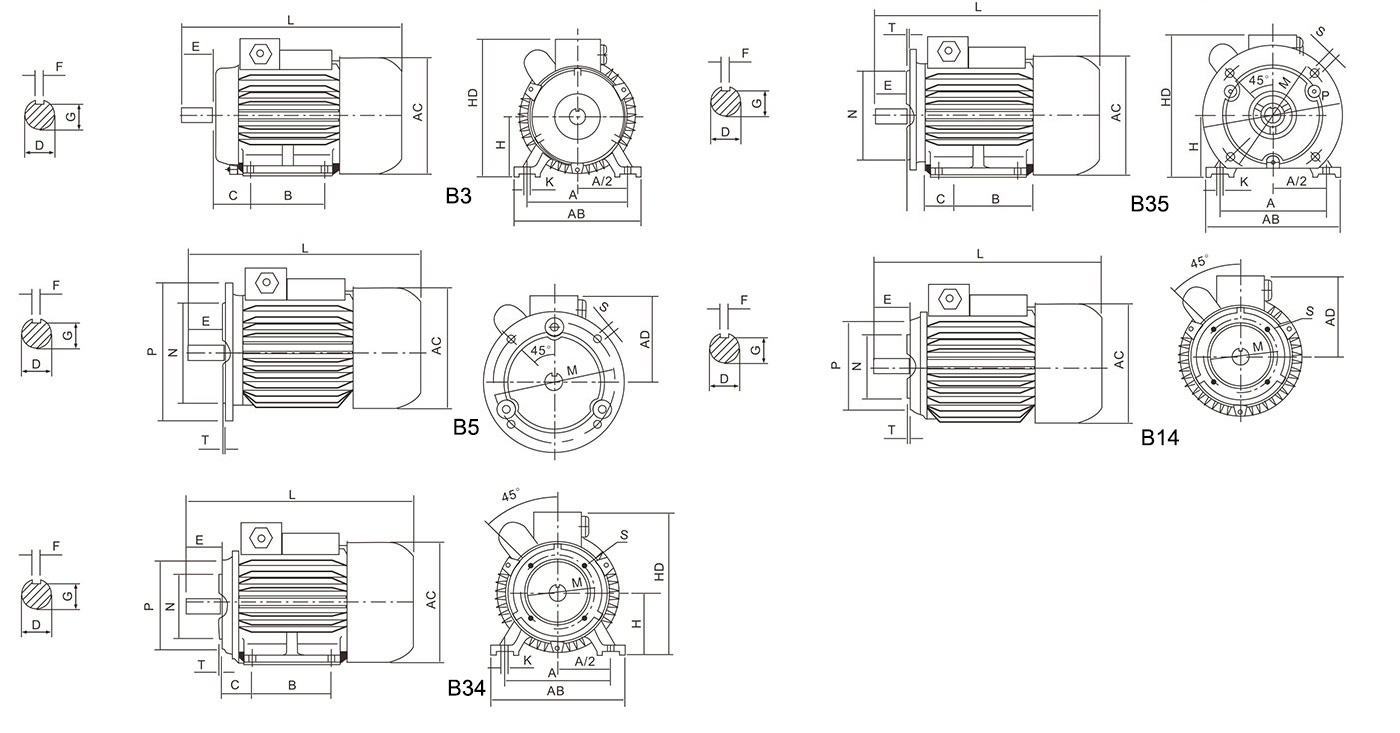

Mounting methods: B3, B35, B5
Material of housing: Cast iron
Frame size: 71~132 frame
Ambient Temperature: -20~40°C
Altitude: 1000 m.a.s.l
Humidity: ≦90%
Protection Class: IP44
Insulation Class: B (130℃)
Temp. Rising: ΔT=80°K (B class)
Cooling: IC411 (Totally-enclosed, fan-cooled)
Working Duty: S1 (Continuous)

YC Series Single Phase AC Electric Motor Applications:

The products have been widely used in the air compressor, pump, refrigerator, washing machine, medical equipment, woodworking machinery, all kinds of agricultural machinery, small machine tools, compression pumps, especially suitable for family workshops where only single-phase power be supplied, and the equipment which need full-load start…etc
