MC Series Aluminum Housing Single Phase Capacitor-Start Induction Motor

MC series aluminum housing single-phase capacitor-started induction motor, with latest design in entirety, are made of selected quality materials and to the IEC standard. The MC series is equipped with a starting device and a start capacitor and driven by a single-phase AC supply. It is designed for applications requiring a high starting torque. The MC series has a larger frame size at the same power compared to the ML series.

Bulletproof Motor’s MC series single phase induction motors are used in a wide range of applications. These series motors can be used for air 一compressor , pump . refrigerator, medical apparatus and instrument . and many other machines needing full-load start . MC motors have good performance. They are reliable, durable, highly efficient, flexible, safety and reliable operation, nice appearance. and can be maintained very conveniently , while with low noise , little vibration and the same time of light weight and Simple Construction . Your overall operating costs and downtime can be minimized by using Bulletproof Motor’s products.

MC Series Aluminum Housing Single Phase Capacitor-Start Induction Motor Features

●Aluminum housing
●Frame size: H71~H112 Pole: 2P, 4P
●Rated power: 0.12KW-3KW; 0.16HP-4HP
●Voltage: 110V, 115V, 220V, 230V, 240V etc. on request
●Frequency: 50Hz/60Hz
●Insulation class: B

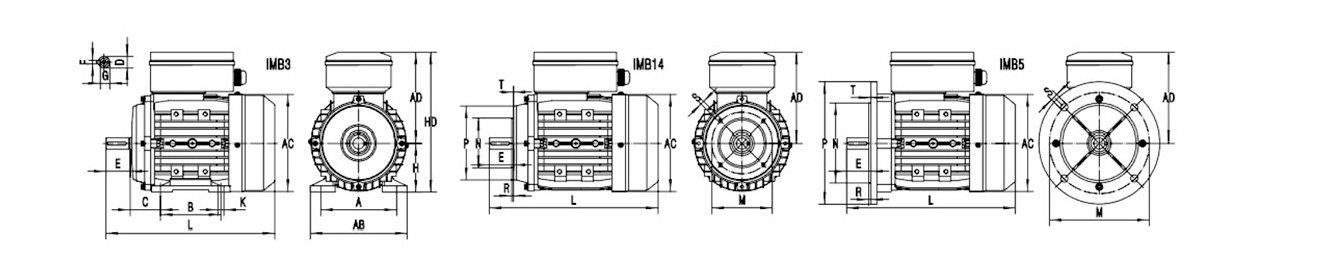

●Mounting types: IM-B3, B5, B35, B14, B34, V1, V3 ,V5, V6, V18, V19 , V36.
●Ambient conditions: Altitude is lower than 1000m; Ambient temperature is -15~40Cº
●Junction box is rotatable 4×90° at top, left, right side
●Multi-mount with removable feet
●S1 duty
●Insulation rating: B / F
●IP rating: IP54 / IP55
●Cooling method: IC411
●Vacuum Pressure Impregnated (VPI) windings
●Execution standard: IEC
●Mounting size: IEC
●Customization is available

The Difference of MC ML MY Aluminum Housing Single-Phase Motor

MC series motor is with 1 capacitor, which is capacitor-start type, which can supply high starting torque.

ML series motor is with 2 capacitors, which are capacitor-start and capacitor-run. They can supply high starting torque and long time stable running performances

MY series motor is with 1 capacitor, which is capacitor-run type, which can supply long time stable running performances.

MC Series Aluminum Housing Single Phase Capacitor-Start Induction Motor Manufacturer

Bulletproof Motor has obtained approvals for ISO9001, CE, CCC and CSA. More than 90 percent of its products are exported to Europe, North America and Australia. Bulletproof’s motors are widely applied in gearboxes, pumps, fans, compressors, coffee grinder machines, food processing lines, etc.

Note: the inquiry or order need to indicate the electric motor model(including frame center’s height,frame length, core length, No. of poles, power, voltage, frequency) ,Mounting method, terminal box location(top/side).

If customers have special request for voltage, frequency and other, can be mentioned in the inquiry or order.
